TIER Multicolour Panel System

TIER Multicolour Panel System

  • 25 year Limited Warranty
  • Multi-Fix System
  • Tested & Approved

NOVA Panel System

ULTRA Panel System

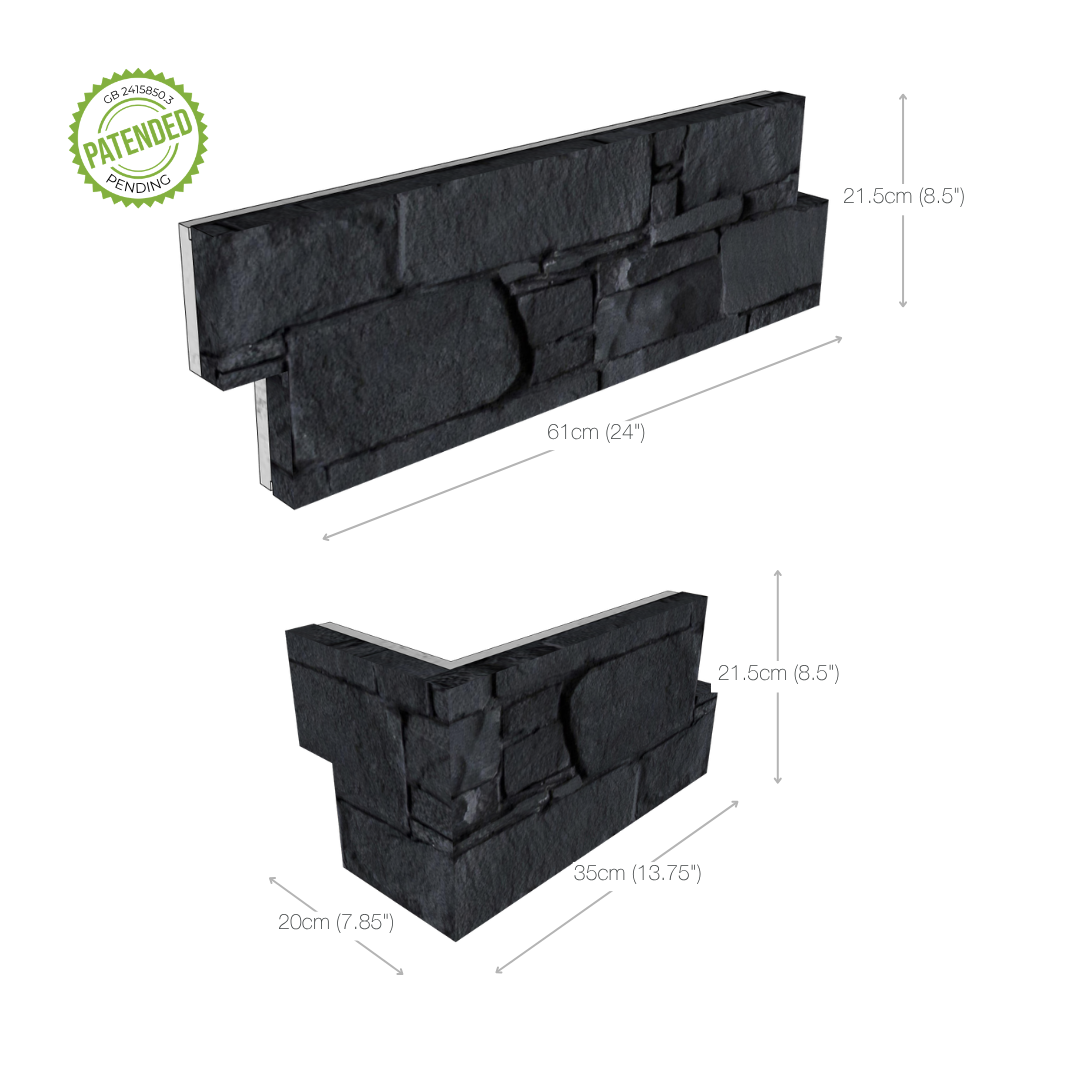

NOVA Panel System

Panels
Box Quantity: 0.48 m2 / (5.2 Sq Ft)
Crate Quantity: 11.52 m2 (125 Sq Ft)
Approximate Weight: 80-85 kg / m2 (16- 17 Ibs / Sq Ft)
Corners
Box Quantity:  2 Pieces
Crate Quantity: 80 Pieces
Approximate Weight: 80-85 kg / m2

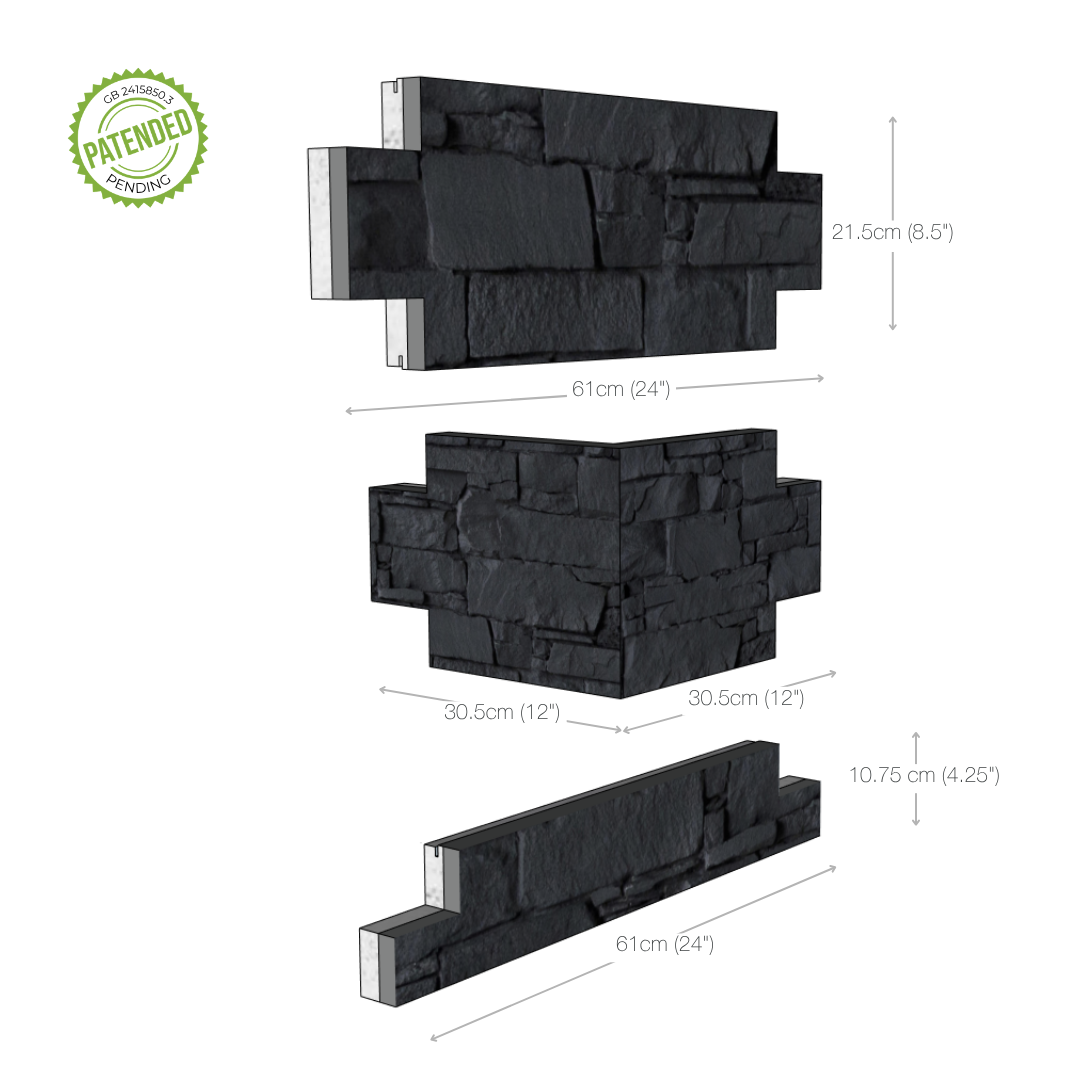

ULTRA Panel System

Panels
Box Quantity: 0.46 m2 (5 Sq Ft)
Crate Quantity: 11.04 m2 (120 Sq Ft)
Approximate Weight: 80-85 kg / m2 (16- 17 Ibs / Sq Ft)
Corners
Box Quantity: 4 Pieces
Crate Quantity: 48 Pieces
Approximate Weight: 80-85 kg / m2 (16- 17 Ibs / Sq Ft)
Starter Panels
Box Quantity: 0.23 m2 (2.5 Sq Ft)
Crate Quantity: 11.04 m2 (60 Sq Ft)
Approximate Weight: 80-85 kg / m2 (16- 17 Ibs / Sq Ft)

TYPE 1

  • Mechanically Fixed

TYPE 2

  • Mechanically Fixed
  • Approved Adhesive

TYPE 3

  • Approved Adhesive

TYPE 1 Brackets

  • TYPE 1 Bracket
  • 100 Pieces / Box

TYPE 2 Brackets

  • TYPE 2 Bracket
  • 100 Pieces / Box

TYPE 3 Brackets

  • TYPE 3 Bracket
  • 100 Pieces / Box

Starter Rail

  • Stainless Steel Starter Rail
  • 10 Pieces / Box

Approved Adhesive

  • Approved Adhesive
  • 56 Bags / Pallet

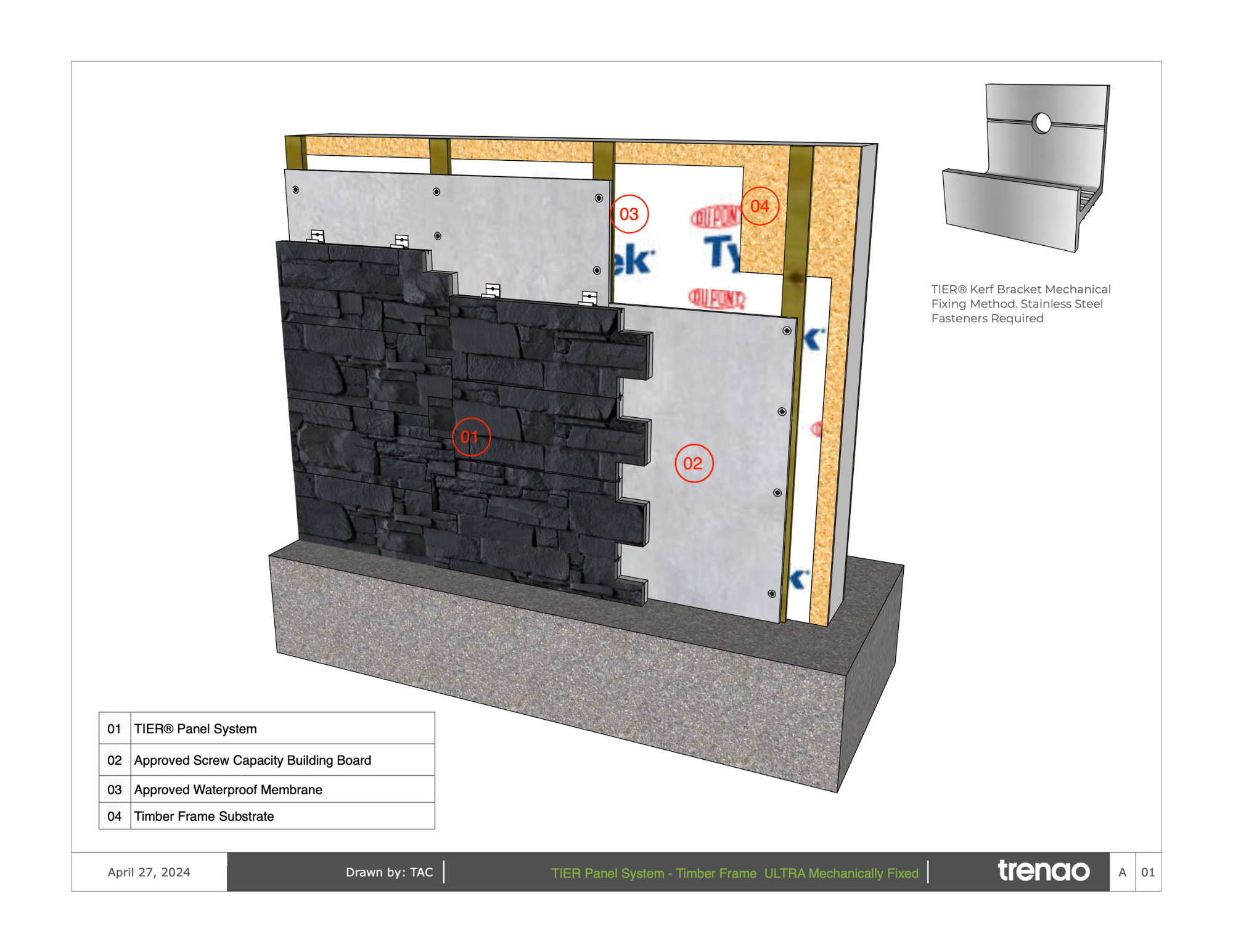

Timber Frame Mechanically Fixed
Timber Frame Mechanically Fixed
Download
Installation Guidelines
Installation Guidelines
Download

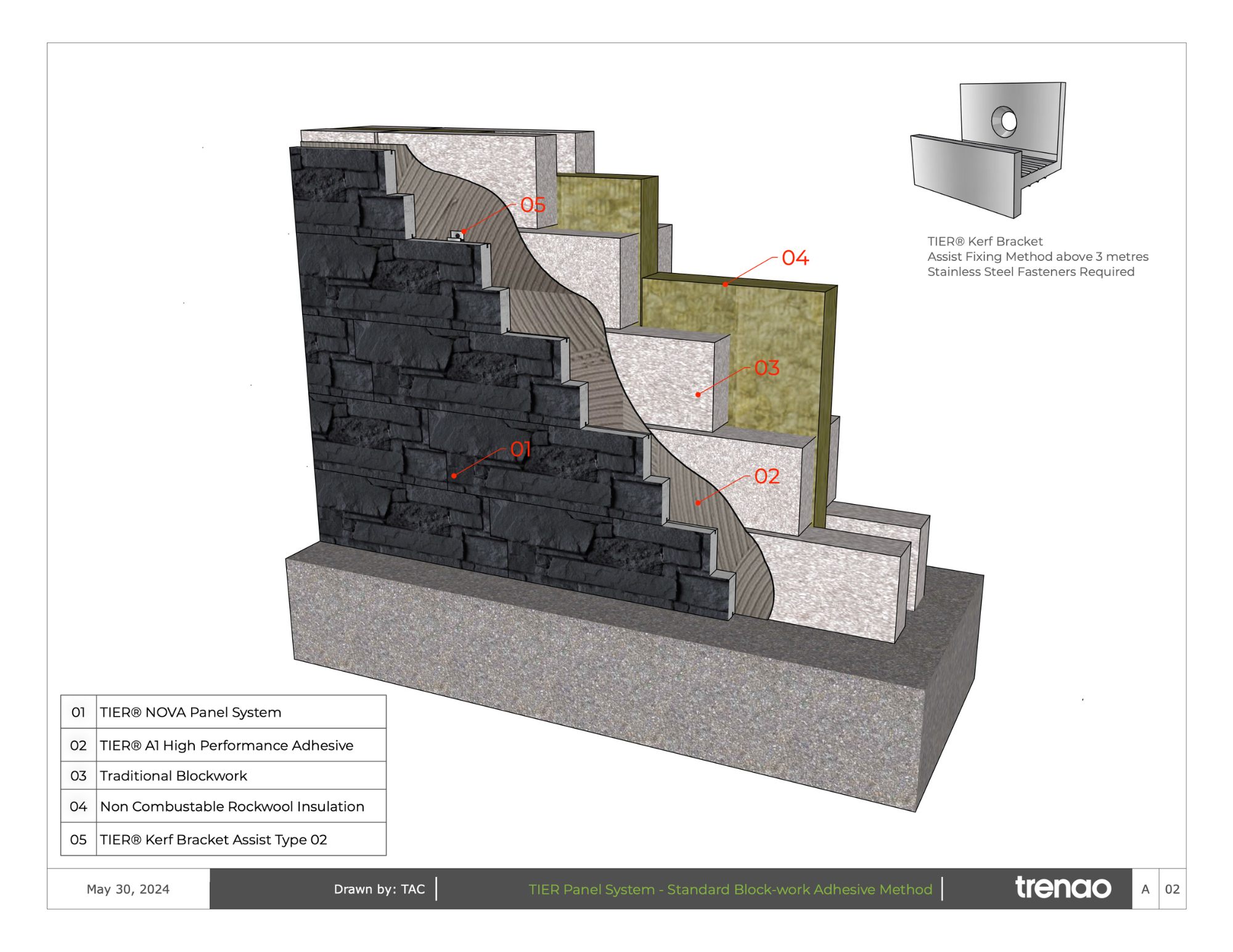

Standard Blockwork Adhesive and Assist Bracket
Standard Blockwork Adhesive and Assist Bracket
Download
Timber Frame ULTRA Adhesive Method
Timber Frame ULTRA Adhesive Method
Download

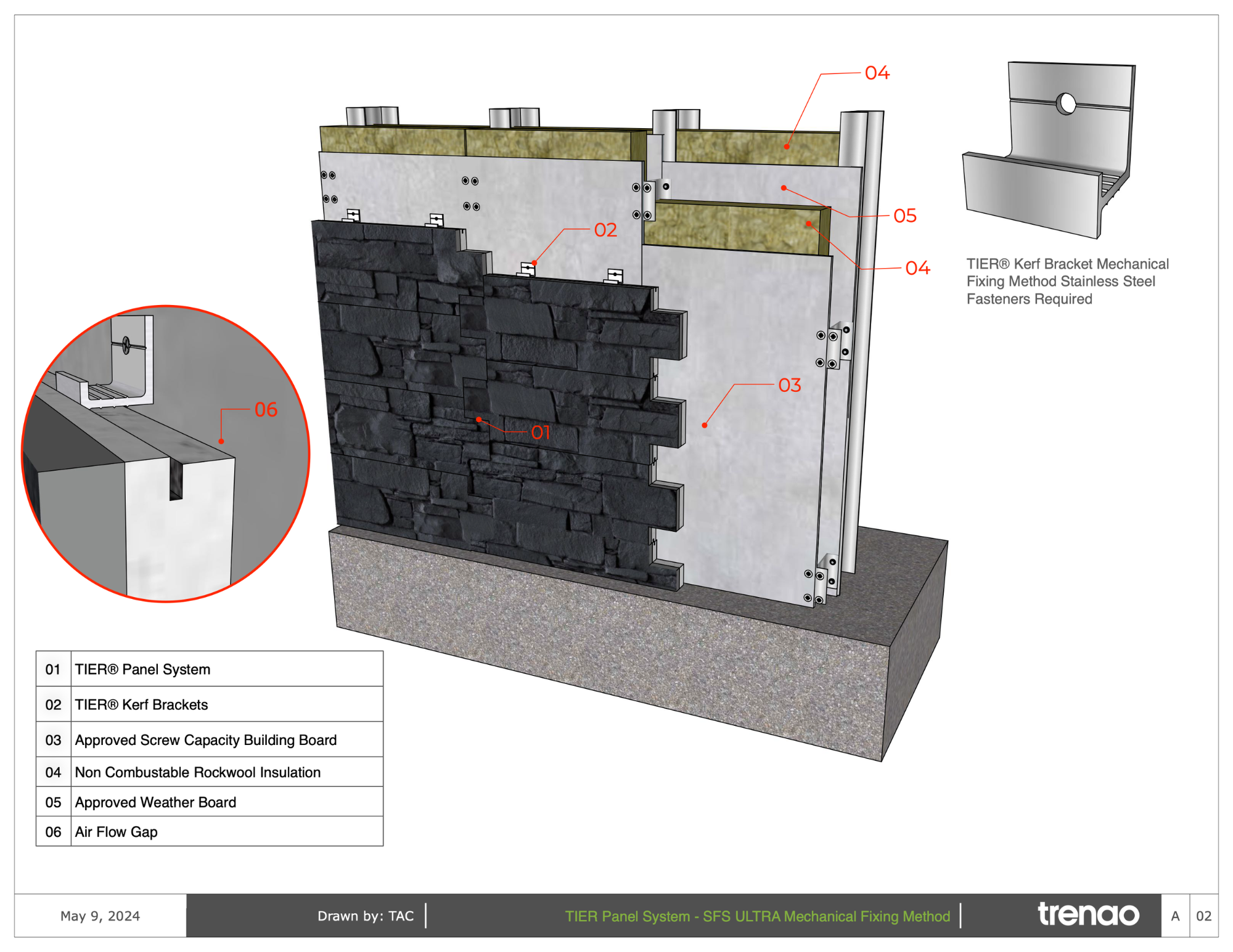

SFS Mechanically Fixed
SFS Mechanically Fixed
Download
SFS ULTRA Adhesive Fix
SFS ULTRA Adhesive Fix
Download

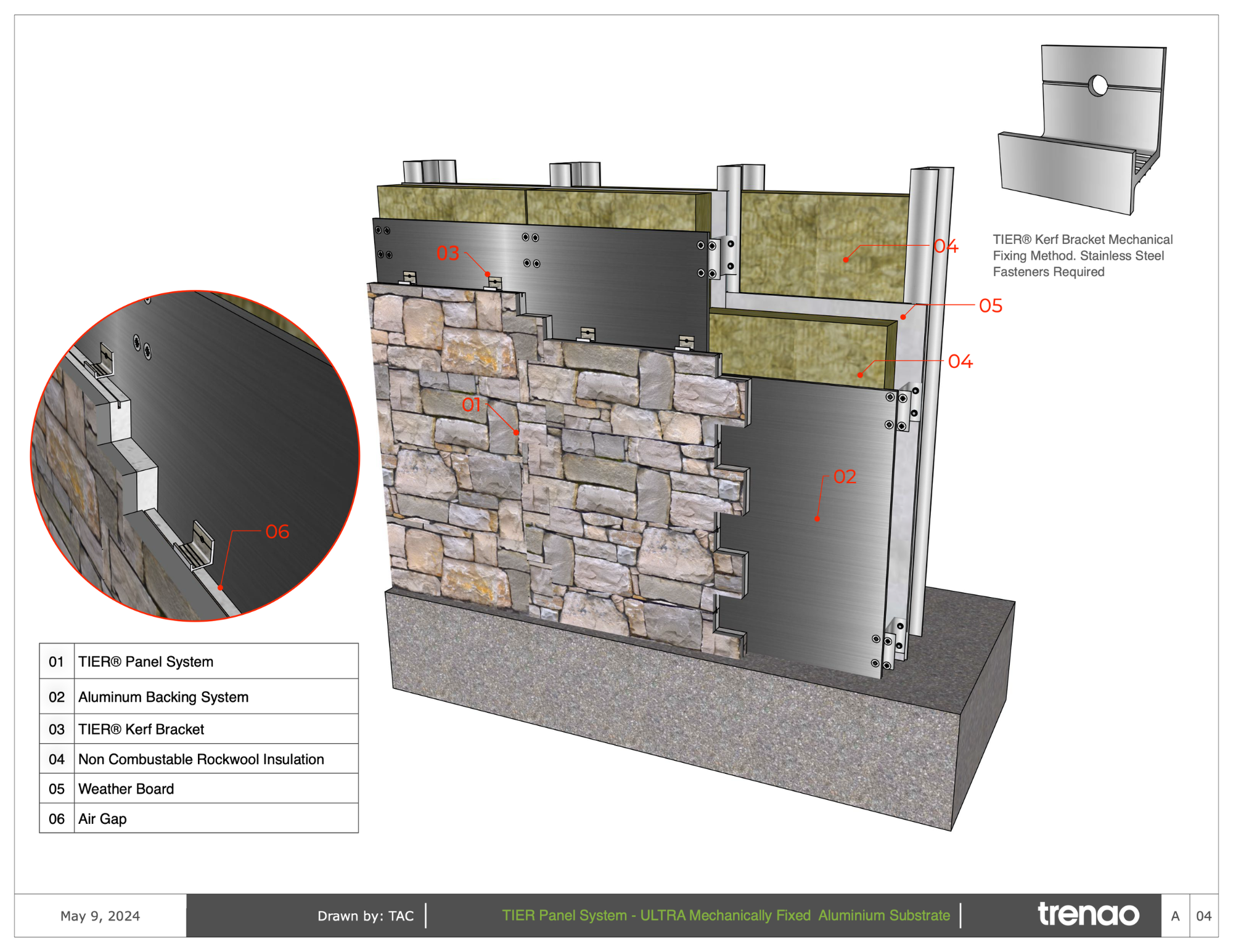

SFS ULTRA Mechanically Fixed Aluminum Method
SFS ULTRA Mechanically Fixed Aluminum Method
Download
Blockwork Mechanically Fixed Method
Blockwork Mechanically Fixed Method
Download

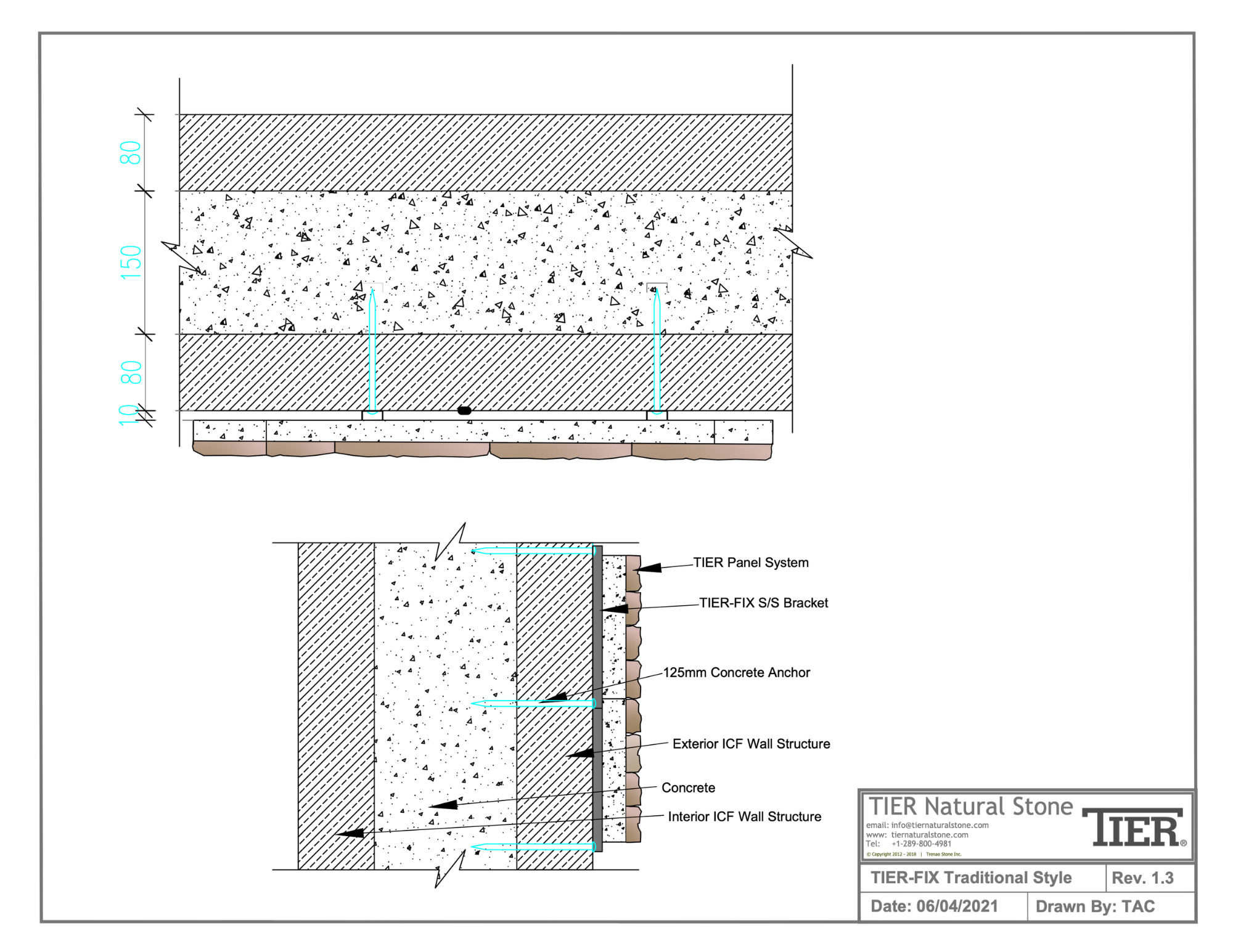

TIER®-FIX Traditional Style ICF Wall Structure
TIER®-FIX Traditional Style ICF Wall Structure
Download
Typical Pier Details with NOVA and Standard Quoins
Typical Pier Details with NOVA and Standard Quoins
Download
Large Pier with Standard Quoins and Panels
Large Pier with Standard Quoins and Panels
Download

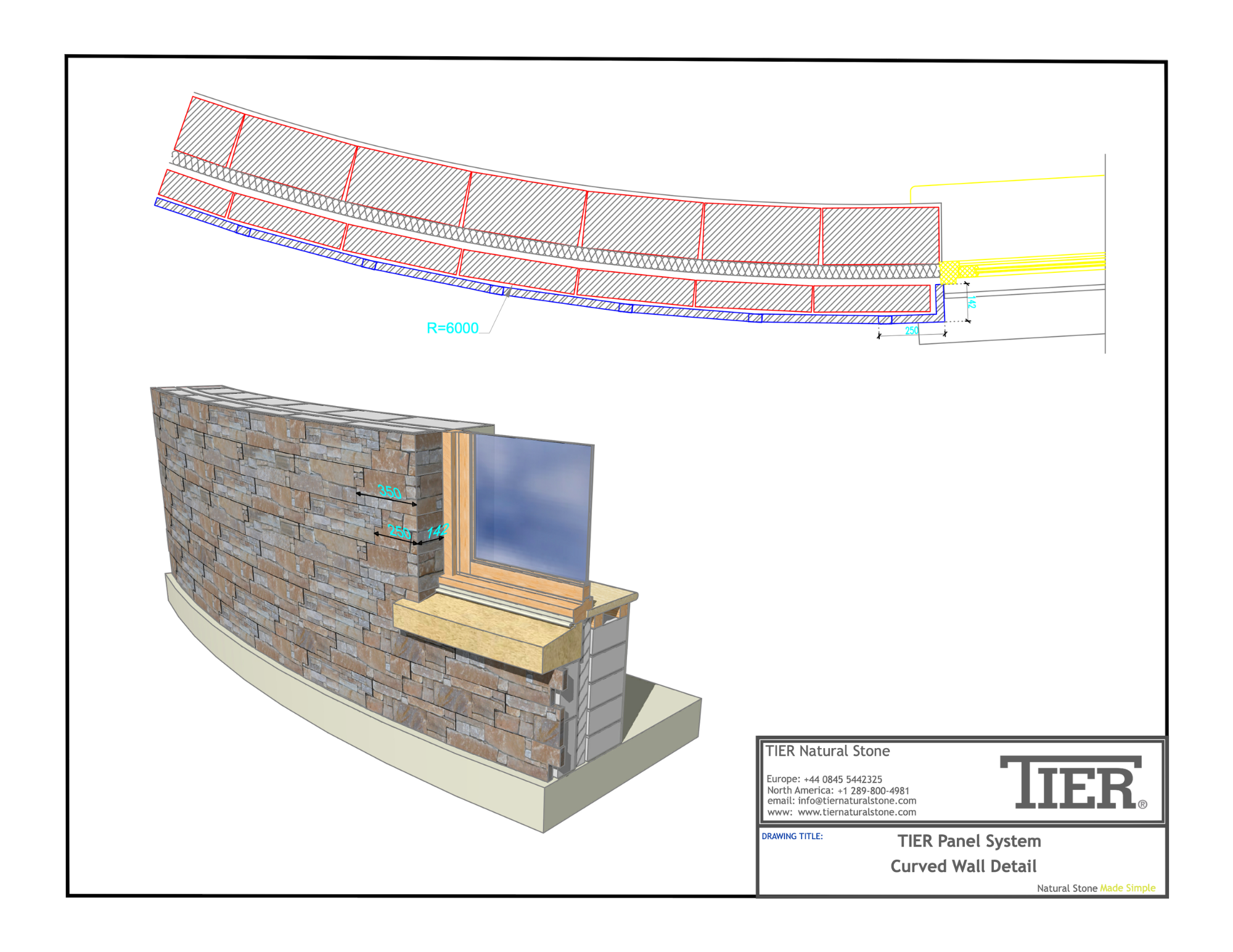

TIER Panels Curved Wall
TIER Panels Curved Wall
Download
TIER Panel Typical Window Detail
TIER Panel Typical Window Detail
Download
XCEL Premium Cladding Adhesive
XCEL Premium Cladding Adhesive
Download

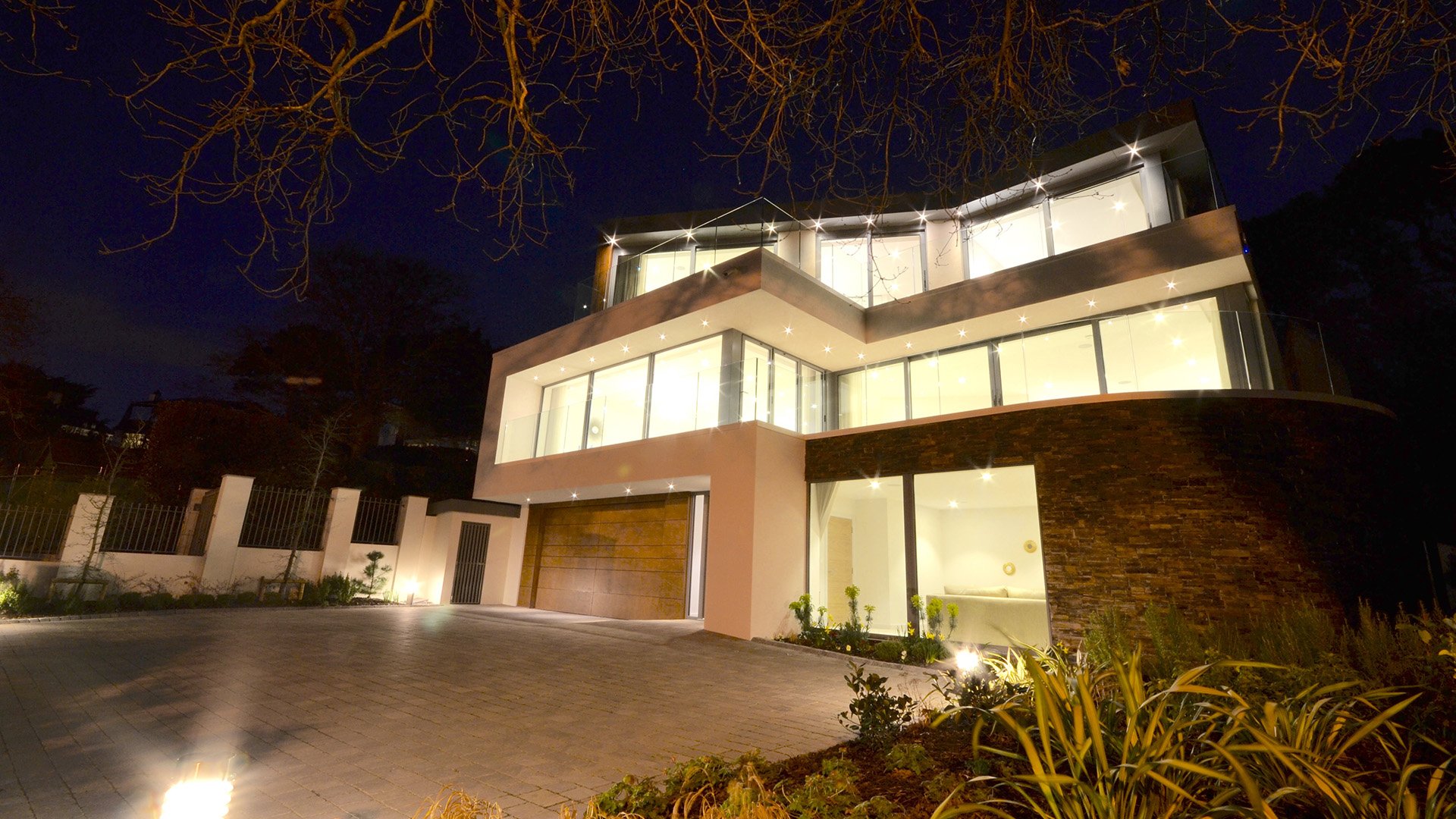

Project Images
